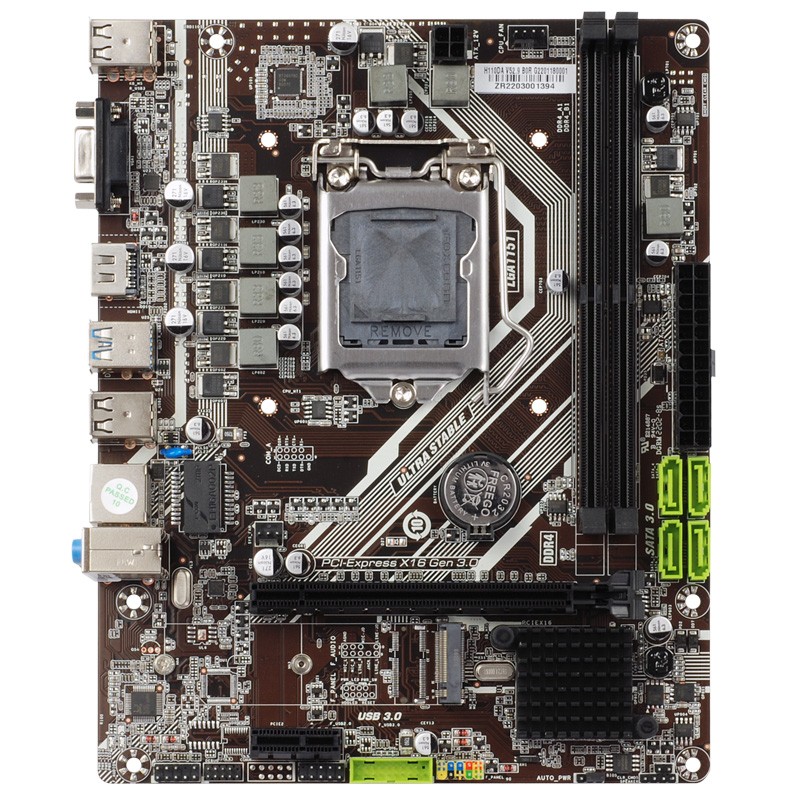

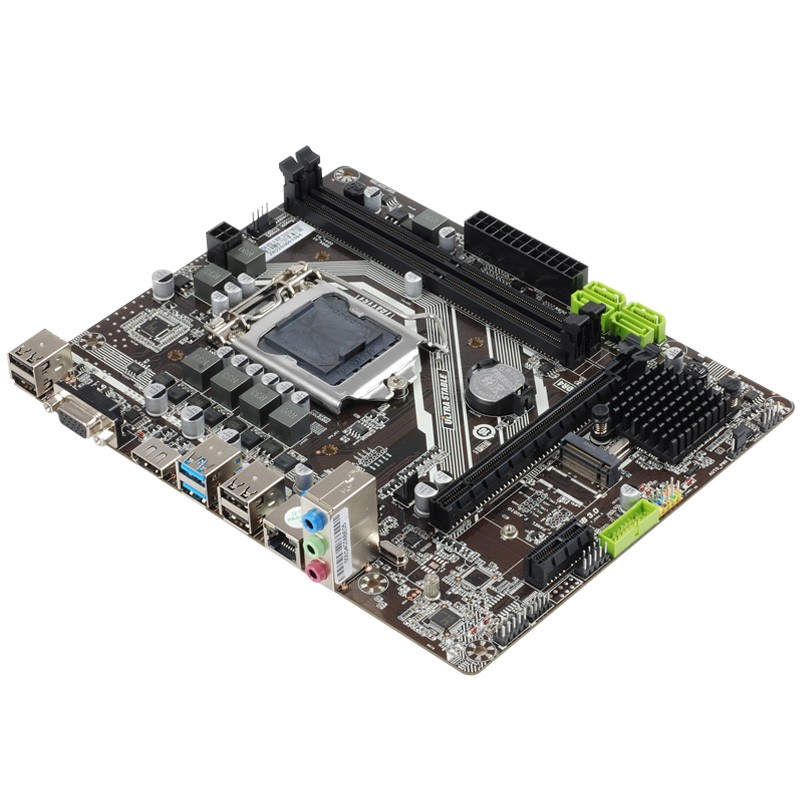

Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard

Original price was: ৳ 5,250.00.Current price is: ৳ 4,500.00.

Key Features
  • Model: Esonic H110DA1
  • Intel Socket LGA1151 for 6/7/8/9th Gen
  • Memory Support DDR4 2133/2400/2666MHz
  • Storage- 4X SATA3.0 6Gb/s
  • Core i7/ i5/i3/ Dual Core

1 in stock

15 People watching this product now!
SKU: 2144207-2-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1 Categories: , ,
Specification
BASIC INFORMATION
Brand Esonic
Model H110DA1
Processor Support Intel® Socket 1151 for 6th/7th/8th/9th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Chipset Intel® H110 Chipset
Memory Support 2 * DDR-4 2133/2400/2666MHz DIMM ,Max. 64GB
Dual channel memory architecture
Graphic Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HD / VGA ports
Slots 1 x PCIe x16 3.0/2.0 slot
1 x PCIe x16 2.0 slot
Storage 1 x M.2 Socket, Supports 2260/2280 SSD
4 x SATA 6Gb/s Ports
LAN Realtek Chip, 1 x 100M(Optional 1000M)
Audio Realtek Chip, ALC 6-channel audio
USB 4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board)
6 * USB 2.0 port (2 at back panel, black, 2 at mid-board)
Back Panel I/O 1 x VGA Port
1 x HDMI Port
1 x LAN (RJ45) Port
2 x USB 3.1 Gen 1 Ports(Blue)
4 x USB 2.0 Ports
3 x flexible audio jacks
Internal I/O 1 x USB 3.1 Gen 1 connector(19pin), supports 2*USB 3.1 Gen 1 ports
1 x USB 2.0 connector, supports 2*USB 2.0 ports
4 x SATA 6Gb/s Ports
2 x 4 -pin CPU_FAN/SYS_FAN connectors
1 x 24-pin ATX power connector
1 x 4-pin 12V ATX Power connectors
1 x F_Audio connector
1 x Internal Speaker connector
1 x F_Panel connector
Dimension 215 x 170mm
Color Black
Warranty 01 year warranty
Description

Description

Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard

Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard” are not available in my database. However, based on the name, we can infer some information:

  1. Chipset: The motherboard uses the H110 chipset. This chipset was released as part of Intel’s Skylake line of processors.
  2. RAM Compatibility: It supports DDR4 memory.
  3. Supported Generations: It’s mentioned to support Intel’s 6th, 7th, 8th, and 9th generation CPUs.
  4. NVMe Support: The motherboard supports NVMe, which suggests that it has M.2 slots that can accept NVMe SSDs.
